When Rain Gauges Overtop: A Collection of Reports Exceeding the CoCoRaHS 11” Gauge Capacity

At MetStat, now DTN,  we employ a wide variety of precipitation data, from 5-minute automated gauge data to storm reports from the public at large. For the past twenty years, however, one of our most valuable daily datasets has been the CoCoRaHS gauge network. The Community Collaborative Rain, Hail, and Snow network began in northern Colorado in 1998, as a response to the devastating Fort Collins flood of July 1997. The Assistant State Climatologist for Colorado at the time, Nolan Doesken, requested rainfall reports from citizens in the affected areas, leading to a much higher density of rainfall reports in the vicinity of the storm than is typically available. This enabled a much more accurate storm analysis, and the idea of a statewide network of volunteer observers was born. By 2010, the network had expanded to all 50 states, Puerto Rico, and Canada.

Part of the reason for the success of the CoCoRaHS concept is its simplicity. Any interested citizen equipped with the official CoCoRaHS rain gauge can sign up to submit once-daily observations via their website. The recommended CoCoRaHS rain gauge is inexpensive, durable, and simple to use (Figure 1), all of which help lower the barrier to entry for would-be citizen scientists. In addition, DTN is also sponsoring an ongoing student engineering project at Colorado State University to add an automated reporting component to the gauge. A network of automated CoCoRaHS gauges would enable us to supplement the thousands of manual daily reports from citizen observers with another valuable near-real-time data source to conceivably produce a consolidated real-time gauge data set of nearly 40,000 reports each hour.

CoCoRaHS rain gauge attached to a fencepost.

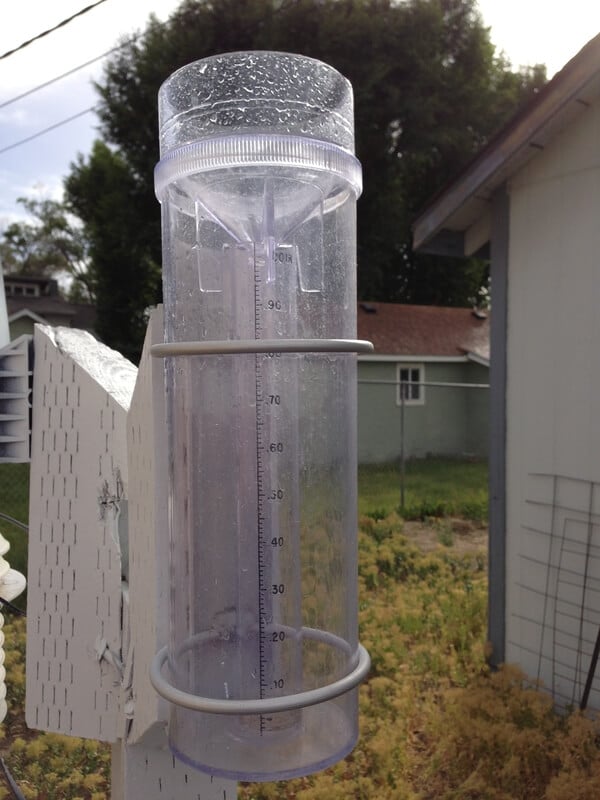

A standard 11″ capacity CoCoRaHS rain gauge.

In tandem with the proliferation of daily CoCoRaHS observers has been a rise in observations of extreme precipitation. The standard CoCoRaHS gauge has an 11.3” capacity, which is of course sufficient for the overwhelming majority of all daily record precipitation observations. However, with thousands of daily observations, particularly in extreme precipitation-prone regions like the southeastern United States, it is inevitable that some observations exceed this threshold within a 1-day period. Not only are these reports remarkable from a meteorological perspective, but they represent incredibly dedicated weather observers that braved the elements to empty their rain gauges amidst the storm.

The record 1-day (24-hour) precipitation measurements for each state are provided here, but the greatest 24-hour precipitation measured in the United States is 42.00 inches reported by an observer 8.5 miles west of Alvin, Texas between 7 AM July 25th and 7 AM July 26th, 1979. The rainfall was associated with Tropical Storm Claudette. The observed emptied the rain gauge several times during this event. In fact, the observer reported that the 10-inch rain gauge was overflowing at 1 AM before emptying it, therefore causing the final measurement to be under-reported by at least 3 inches. The world record 1-day rainfall is an astonishing 71.9 inches at Foc-Foc, Réunion Island on January 7, 1966 according the the World Meteorological Organization’s World Weather & Climate Extremes Archive.

Numerous dedicated CoCoRaHS observes emptied their rain gauges 1-2 times during Hurricane Harvey.  In fact, according to the National Weather Service in Lake Charles, Louisiana, a rain gauge near Nederland, Texas collected 64.58 inches of rain between Aug. 24 and Sep. 1. Although preliminary, if this is confirmed it would represent the largest total storm rainfall from any tropical cyclone to hit the United States in recorded history.

The table below represents all CoCoRaHS daily reports that have met or exceeded that 11” gauge capacity, with comments that describe the nature of each event, between 1998 and October 2017. The table includes over 500 reports, so be sure to use the table’s search features to look for event names (e.g., “Hurricane Harvey”) or dates in decimal YYYY.MM.DD format (e.g., “2017.08.30”), or just try flipping through the pages.

Report Date Report Time (local) Station ID Station Name Amount (in) State County Event
2016.10.09  7:00 AM   NC-DP-3   Mount Olive 2.4 SW  11.92 NC Duplin Hurricane Matthew
2016.10.09  7:00 AM   NC-CW-22   Edenton 2.0 W  11.75 NC Chowan Hurricane Matthew
2016.10.08  3:00 PM   SC-CR-32   Meggett 1.8 W  11.73 SC Charleston Hurricane Matthew
2016.10.09  7:00 AM   VA-VBC-21   Virginia Beach 3.1 ENE  11.70 VA Virginia Beach (city) Hurricane Matthew
2016.10.08  6:15 PM   SC-CL-14   Green Pond 1.3 S  11.66 SC Colleton Hurricane Matthew
2016.10.09  8:00 AM   NC-SM-2   Dunn 7.1 SSE  11.60 NC Sampson Hurricane Matthew
2016.10.09  2:00 PM   NC-DR-10   Kill Devil Hills 0.9 WNW  11.50 NC Dare Hurricane Matthew
2016.10.09  8:00 AM   NC-GT-4   Gatesville 3.3 NE  11.35 NC Gates Hurricane Matthew
2016.10.08  7:00 AM   SC-CL-16   Cottageville 5.8 WSW  11.34 SC Colleton Hurricane Matthew
2016.10.09  7:00 AM   NC-CW-15   Edenton 0.9 N  11.28 NC Chowan Hurricane Matthew
2016.10.09  10:00 AM   VA-VBC-2   Virginia Beach 11.2 NNW  11.24 VA Virginia Beach (city) Hurricane Matthew
2016.10.09  8:30 AM   NC-CM-6   Hope Mills 8.3 SE  11.16 NC Cumberland Hurricane Matthew
2016.10.09  7:00 AM   NC-CM-5   Fayetteville 4.4 SW  11.15 NC Cumberland Hurricane Matthew
2016.10.09  7:00 AM   NC-CW-20   Edenton 4.3 SE  11.10 NC Chowan Hurricane Matthew
2016.10.09  7:00 AM   NC-CM-62   Fayetteville 5.4 WNW  11.10 NC Cumberland Hurricane Matthew
2016.10.09  7:00 AM   VA-PRC-2   Portsmouth 4.1 SSE  11.09 VA Portsmouth (city) Hurricane Matthew
2016.10.09  6:00 AM   VA-CSC-3   Chesapeake 8.6 NE  11.03 VA Chesapeake (city) Hurricane Matthew
2016.10.09  7:00 AM   GA-CT-6   Savannah 3.1 SSE  11.00 GA Chatham Hurricane Matthew
2016.10.09  8:00 AM   NC-WY-10   Goldsboro 11.5 WSW  11.00 NC Wayne Hurricane Matthew
2016.10.08  7:00 AM   GA-CT-3   Savannah 3.9 SSW  11.00 GA Chatham Hurricane Matthew
2016.10.08  7:00 AM   SC-BF-4   Bluffton 2.3 NNE  11.00 SC Beaufort Hurricane Matthew
2016.10.08  7:00 AM   SC-BF-53   Parris Island 1.7 N  11.00 SC Beaufort Hurricane Matthew
2016.10.08  7:30 AM   GA-BR-2   Richmond Hill 0.5 NE  11.00 GA Bryan Hurricane Matthew
2016.10.08  8:00 AM   GA-EF-1   Rincon 1.5 SSE  11.00 GA Effingham Hurricane Matthew
2016.10.08  8:00 AM   SC-BF-35   Beaufort 3.6 NNE  11.00 SC Beaufort Hurricane Matthew
2016.10.08  8:00 AM   SC-CD-2   Manning 8.2 S  11.00 SC Clarendon Hurricane Matthew
2016.10.08  11:00 AM   SC-CR-78   North Charleston 3.1 ESE  11.00 SC Charleston Hurricane Matthew
2016.09.03  8:00 AM   SC-GT-4   Georgetown 6.0 S  11.87 SC Georgetown Tropical Storm Hermine (2016)
2016.09.01  4:31 AM   FL-PN-64   Seminole 3.2 WNW  12.83 FL Pinellas Local thunderstorm
2016.08.21  7:00 AM   TX-GZ-21   Gonzales 4.4 NNW  11.11 TX Gonzales Local thunderstorm
2016.08.12  7:00 AM   LA-EB-9   Brownfields 5.8 NE  18.46 LA East Baton Rouge Parish “No-name” tropical depression
2016.08.13  7:00 AM   LA-EB-56   Jackson 10.1 SSW  17.65 LA East Baton Rouge Parish “No-name” tropical depression
2016.08.13  7:00 AM   LA-EB-23   Brownfields 4.0 E  16.05 LA East Baton Rouge Parish “No-name” tropical depression
2016.08.13  7:30 AM   LA-EB-19   Monticello 3.0 ENE  15.48 LA East Baton Rouge Parish “No-name” tropical depression
2016.08.12  7:20 PM   LA-WF-4   Wakefield 0.9 WNW  14.65 LA West Feliciana Parish “No-name” tropical depression
2016.08.13  7:00 AM   LA-LV-4   Denham Springs 4.1 NE  14.19 LA Livingston Parish “No-name” tropical depression
2016.08.13  7:00 AM   MS-AM-3   Gloster 1.9 SSW  12.86 MS Amite “No-name” tropical depression
2016.08.12  7:00 AM   LA-LV-4   Denham Springs 4.1 NE  11.56 LA Livingston Parish “No-name” tropical depression
2016.08.13  6:30 AM   LA-EB-46   Baton Rouge 1.4 WSW  11.12 LA East Baton Rouge Parish “No-name” tropical depression
2016.08.12  6:00 AM   LA-EB-31   Central 2.2 SE  11.10 LA East Baton Rouge Parish “No-name” tropical depression
2016.08.13  6:00 AM   LA-EB-31   Central 2.2 SE  11.00 LA East Baton Rouge Parish “No-name” tropical depression
2016.05.27  7:00 AM   TX-WA-17   Brenham 9.9 N  21.46 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-24   Brenham 0.7 E  19.14 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-6   Brenham 8.0 E  16.70 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-9   Chappell Hill 1.0 NW  16.40 TX Washington Thunderstorm complex
2016.05.27  6:00 AM   TX-MNG-55   Montgomery 8.6 SSW  16.30 TX Montgomery Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-3   Hempstead 10.0 NNW  14.43 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-MNG-51   Magnolia 2.8 S  13.11 TX Montgomery Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-21   Brenham 8.2 WSW  13.10 TX Washington Thunderstorm complex
2016.05.26  9:08 PM   TX-WA-18   Brenham 1.4 NNW  13.00 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-22   Burton 4.4 ENE  12.56 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-1   Burton 6.9 SSW  12.00 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-15   Carmine 3.1 WNW  11.68 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-MNG-49   Magnolia 10.6 ENE  11.35 TX Montgomery Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-10   Chappell Hill 1.8 N  11.23 TX Washington Thunderstorm complex
2016.05.27  8:00 AM   TX-WA-12   Washington 3.1 SSW  11.20 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-TV-272   Creedmoor 2.6 N  11.15 TX Travis Thunderstorm complex
2016.05.27  7:00 AM   TX-FY-2   Round Top 0.2 W  11.11 TX Fayette Thunderstorm complex
2016.05.27  8:00 AM   TX-WA-8   Burton 5.3 NNE  11.08 TX Washington Thunderstorm complex
2016.05.27  7:00 AM   TX-TV-135   Creedmoor 1.5 NNW  11.03 TX Travis Thunderstorm complex
2016.05.27  7:00 AM   TX-MNG-36   The Woodlands 5.8 NW  11.00 TX Montgomery Thunderstorm complex
2016.05.27  7:00 AM   TX-WA-5   Brenham 7.2 SW  11.00 TX Washington Thunderstorm complex
2016.05.18  7:00 AM   FL-IR-15   Vero Beach 1.5 WSW  12.67 FL Indian River Local thunderstorm
2016.05.18  7:00 AM   FL-SL-4   Lakewood Park 0.5 SW  11.20 FL St. Lucie Local thunderstorm
2016.05.16  7:00 AM   TX-NU-10   Flour Bluff 1.6 SW  13.44 TX Nueces Thunderstorm complex
2016.05.16  7:00 AM   TX-SP-22   Ingleside 0.6 W  12.81 TX San Patricio Thunderstorm complex
2016.05.16  7:00 AM   TX-NU-7   Corpus Christi 9.0 SSE  12.30 TX Nueces Thunderstorm complex
2016.05.16  7:00 AM   TX-NU-61   Corpus Christi 6.9 SE  12.29 TX Nueces Thunderstorm complex
2016.05.16  7:00 AM   TX-NU-15   Corpus Christi 9.1 NW  11.71 TX Nueces Thunderstorm complex
2016.05.16  9:00 AM   TX-NU-57   Corpus Christi 7.2 WSW  11.45 TX Nueces Thunderstorm complex
2016.05.16  7:00 AM   TX-NU-53   Corpus Christi 3.4 WSW  11.25 TX Nueces Thunderstorm complex
2016.05.16  6:50 AM   TX-NU-4   Corpus Christi 8.0 WNW  11.14 TX Nueces Thunderstorm complex
2016.05.16  6:29 AM   TX-NU-66   Corpus Christi 8.0 NW  11.08 TX Nueces Thunderstorm complex
2016.05.16  6:30 AM   TX-SP-23   Ingleside on the Bay 0.7 NE  11.05 TX San Patricio Thunderstorm complex
2016.05.16  7:00 AM   TX-AR-8   Aransas Pass 6.1 NNW  11.00 TX Aransas Thunderstorm complex
2016.05.16  7:00 AM   TX-NU-45   Corpus Christi 6.7 WSW  11.00 TX Nueces Thunderstorm complex
2016.04.18  8:00 AM   TX-WL-9   Brookshire 6.9 NNW  16.00 TX Waller Thunderstorm complex
2016.04.18  6:00 AM   TX-HRR-228   Katy 5.2 E  13.22 TX Harris Thunderstorm complex
2016.04.18  7:00 AM   TX-AS-6   San Felipe 1.0 WNW  12.25 TX Austin Thunderstorm complex
2016.04.18  7:00 AM   TX-CLR-6   New Ulm 7.2 S  12.13 TX Colorado Thunderstorm complex
2016.04.18  12:00 PM   TX-HRR-223   Mission Bend 5.6 NNW  12.05 TX Harris Thunderstorm complex
2016.04.18  7:35 AM   TX-HRR-225   Tomball 4.3 S  12.02 TX Harris Thunderstorm complex
2016.04.18  7:00 AM   TX-HRR-222   Mission Bend 5.7 NNW  12.00 TX Harris Thunderstorm complex
2016.04.18  8:00 AM   TX-AS-14   Bellville 7.6 ESE  12.00 TX Austin Thunderstorm complex
2016.04.18  7:00 AM   TX-AS-5   Sealy 0.3 WNW  11.25 TX Austin Thunderstorm complex
2016.04.18  7:00 AM   TX-AS-7   Sealy 1.9 NNE  11.25 TX Austin Thunderstorm complex
2016.04.18  7:17 AM   TX-FB-17   Richmond 3.4 NE  11.25 TX Fort Bend Thunderstorm complex
2016.04.18  9:00 AM   TX-AS-3   Cat Spring 3.8 N  11.25 TX Austin Thunderstorm complex
2016.04.18  7:00 AM   TX-HRR-164   Jersey Village 4.6 NW  11.20 TX Harris Thunderstorm complex
2016.04.18  8:00 AM   TX-AS-12   Cat Spring 1.4 N  11.17 TX Austin Thunderstorm complex
2016.04.18  5:40 AM   TX-HRR-212   Katy 9.3 NE  11.14 TX Harris Thunderstorm complex
2016.04.18  9:00 AM   TX-AS-8   Industry 4.0 NNE  11.11 TX Austin Thunderstorm complex
2016.04.18  7:00 AM   TX-AS-2   New Ulm 0.1 ENE  11.00 TX Austin Thunderstorm complex
2016.03.11  8:00 AM   LA-WS-2   Franklinton 0.4 ENE  14.00 LA Washington Parish Thunderstorm complex
2016.03.11  7:00 AM   LA-TG-11   Ponchatoula 1.6 NNW  13.36 LA Tangipahoa Parish Thunderstorm complex
2016.03.11  10:00 AM   LA-TG-6   Tickfaw 2.0 SSW  13.20 LA Tangipahoa Parish Thunderstorm complex
2016.03.10  5:00 AM   LA-OC-4   Monroe 1.9 NNW  13.07 LA Ouachita Parish Thunderstorm complex
2016.03.10  8:00 AM   LA-NT-2   Natchitoches 0.9 NE  12.51 LA Natchitoches Parish Thunderstorm complex
2016.03.10  7:00 AM   LA-OC-11   West Monroe 10.1 SW  12.20 LA Ouachita Parish Thunderstorm complex
2016.03.09  7:00 AM   LA-WR-6   Minden 2.0 NE  12.16 LA Webster Parish Thunderstorm complex
